✓ Hashrate Options: 182 TH/s / 188 TH/s / 200 TH/s
✓ Power Consumption: 3367W (182 TH/s) / 3478W (188 TH/s) / 3700W 200 TH/s
✓ Power Efficiency: 18.4 J/TH
✓ Noise Level: 75 dB
✓ Size: 301 x 192 x 292 mm
✓ Weight: 14.9 kg (net), 15.9 kg (gross)
✓ Fans: 2
✓ Voltage: 220V – 277V
✓ Network: RJ45 Ethernet 100M
✓ Operating Temperature: -5°C to 35°C
✓ Humidity: 10% – 90%
✓ Warranty: 6 months manufacturer repair or replacement parts
Ships in 5 days from payment. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

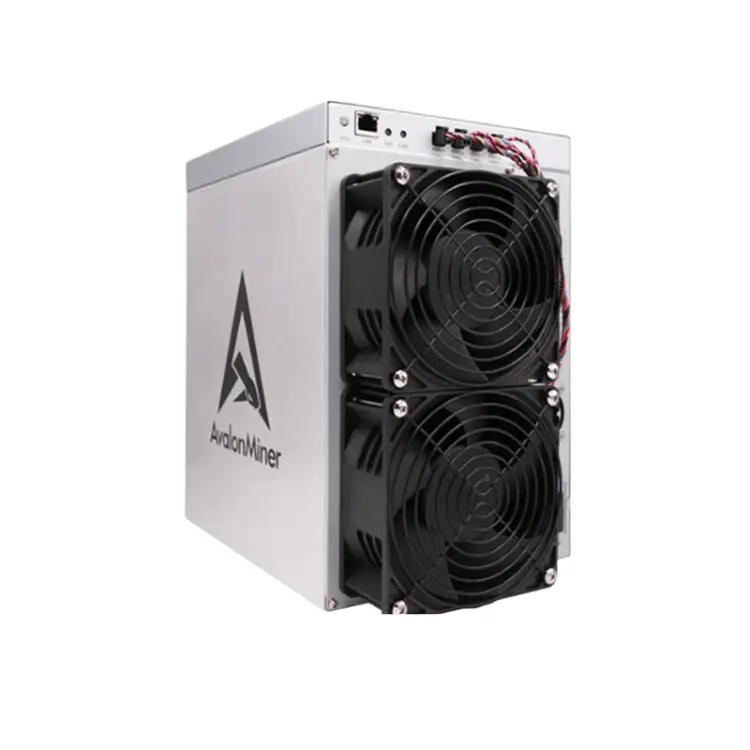

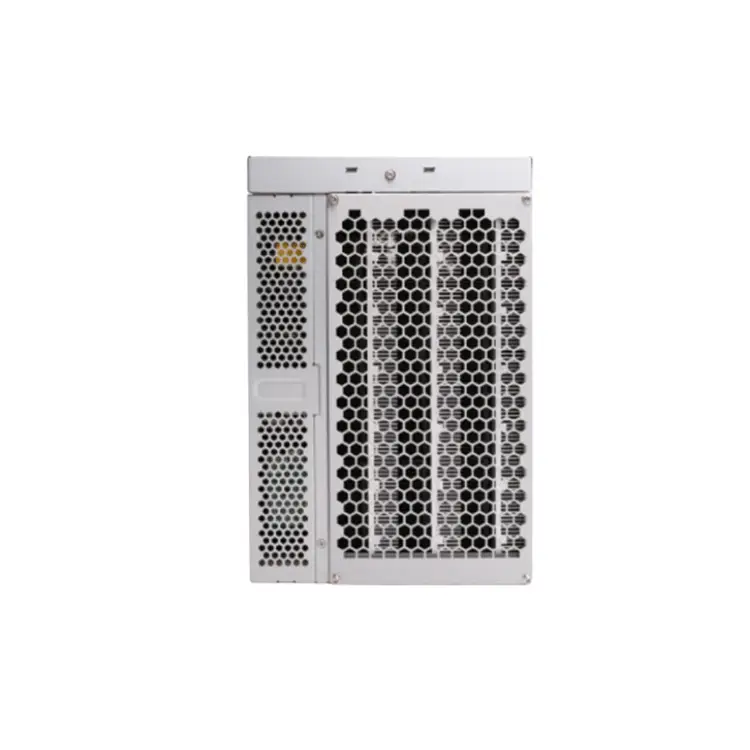

The Avalon A1566 by Canaan is a high-performance Bitcoin mining machine, designed to meet the needs of large-scale mining operations.
Available in two hash rate options — 182 TH/s and 188 TH/s — the Avalon A1566 delivers exceptional power efficiency at 18.4 J/TH and operates
with a noise level of 75 dB, making it a reliable and effective choice for mining farms.
With a compact design measuring 301 x 192 x 292 mm, the Avalon A1566 is easy to integrate into your mining setup. It weighs 14.9 kg (net) and
comes with two fans to ensure optimal cooling during operation. This miner is built to function in a wide range of environments, with an operating
temperature range of -5°C to 35°C and humidity tolerance between 10% and 90%.
The Avalon A1566 operates on a voltage range of 220V to 277V and utilizes RJ45 Ethernet 100M for stable and fast network connectivity.
Whether you're selecting the 182 TH/s model with a power consumption of 3367W or the 188 TH/s model that consumes 3478W, both variants
offer top-tier performance for maximizing mining efficiency.
Built for durability and performance, the Avalon A1566 ensures reliable mining operations with minimal downtime, making it an ideal
choice for serious Bitcoin miners.
| Specification | Avalon A1566 (182 TH/s) | Avalon A1566 (188 TH/s) |
|---|---|---|
| Manufacturer | Canaan | Canaan |
| Model | Avalon A1566 | Avalon A1566 |
| Release | October 2024 | October 2024 |
| Hashrate | 182 TH/s | 188 TH/s |
| Noise level | 75 dB | 75 dB |
| Size (without package) | 301 x 192 x 292 mm | 301 x 192 x 292 mm |
| Size (with package) | 390 x 290 x 395 mm | 390 x 290 x 395 mm |
| Weight (net) | 14,900 g | 14,900 g |
| Weight (gross) | 15,900 g | 15,900 g |
| Fan(s) | 2 | 2 |
| Voltage | 220V – 277V | 220V – 277V |
| Network connection method | RJ45 Ethernet 100M | RJ45 Ethernet 100M |
| Power | 3367 W | 3478 W |
| Power efficiency | 18.4 J/Th | 18.4 J/Th |
| Hash-boards | 3x | 3x |
| Interface | Ethernet | Ethernet |
| In stock | Yes | Yes |
| Temperature | -5°C to 35°C | -5°C to 35°C |
| Humidity | 10% – 90% | 10% – 90% |
