Supermicro SuperServer SYS-741GE-TNRT

0 out of 5 (0)

Write a review

✓ Supports 4th Gen Intel® Xeon® Scalable processors, including Xeon® CPU MAX Series

✓ 16 DIMM slots with up to 4TB capacity: 16x 256 GB DRAM Memory Type at 4800MHz ECC DDR5

✓ 4x PCIe 5.0 x16 (double-width) slots

✓ 3x PCIe 5.0 x16 (single-width) slots

✓ Accommodates up to 4x double-width, full-length GPUs

✓ 2x M.2 NVMe slots dedicated for boot drive

✓ Enhanced processing power with Intel® Xeon® Scalable processors

✓ High-speed and reliable memory support with ECC DDR5 technology

✓ Versatile PCIe slots for diverse expansion options

✓ Efficient GPU configuration for enhanced graphics capabilities

✓ Swift and responsive boot drive storage with dual M.2 NVMe slots

✓ 2-year manufacturer repair or parts replacement warranty included

✓ 2x P4X-SPR4410T-SRMGS-MCC 2

✓ 8x MEM-DR564MC-ER48 8

✓ 1x HDS-25T0-480GO-L2-TXD-NON-007

✓ 1x HDS-25N4-003T8-E1-TXD-SED-007

✓ 8x GPU-NVL40 NVIDIA Ada L40 48GB GDDR6 PCIe 4th Gen – 300w

Get this product for

$56,500.00

Get it in 10 days

Estimate for 682345

Will be delivered to your location via DHL

Inquiry to Buy

Description Specifications Download Reviews (0)

Description

Specifications

Product SKUs
SuperServer SYS-741GE-TNRT (Black Front & Silver Body)

Motherboard
Super X13DEG-QT

Processor
CPU	Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors Future support for the upcoming 5th Gen Intel® Xeon® processors
Note	Supports up to 350W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 4 double-width or 7 single-width GPU(s)
Supported GPU	AMD PCIe: Instinct MI210 NVIDIA PCIe: H100,RTX A5500,RTX A4000,A100,L40,RTX A6000,A30
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional)

System Memory
Memory	Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 4800MHz ECC DDR5 DRAM
Memory Voltage	1.1 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset	Intel® C741
Network Connectivity	2x 10GbE BaseT with Intel® X550-AT2
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	Tower Rackmount
Model	CSE-749TS-R2K05BP

Dimensions and Weight
Height	7″ (178mm)
Width	17.2″ (437mm)
Depth	29″ (737mm)
Package	27″ (H) x 13″ (W) x 38″ (D)
Weight	Net Weight: 46 lbs (20.9 kg) Gross Weight: 62 lbs (28.1 kg)
Available Color	Black Front & Silver Body

Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED

Expansion Slots
PCI-Express (PCIe)	7 PCIe 5.0 x16 FHFL slot(s)

Drive Bays / Storage

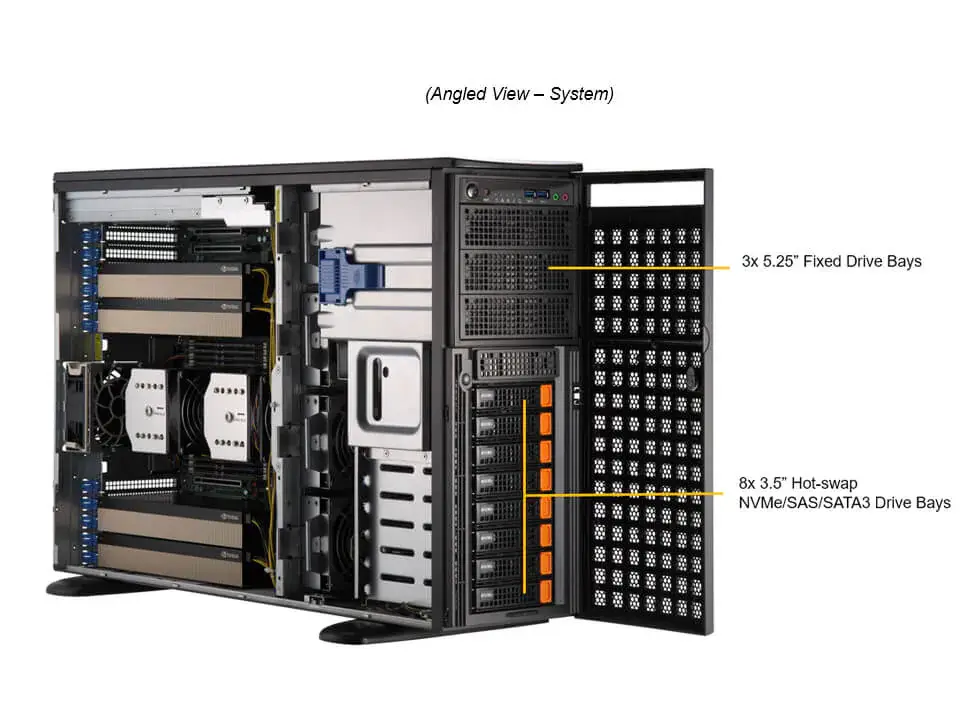

Hot-swap	8x 3.5″ hot-swap NVMe/SATA/SAS drive bays (8x 2.5″ NVMe hybrid)
M.2	2 M.2 NVMe

System Cooling
Fans	4 heavy duty fans with optimal fan speed control

Power Supply
2000W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 265 mm
AC Input	1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100Vac-120Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
