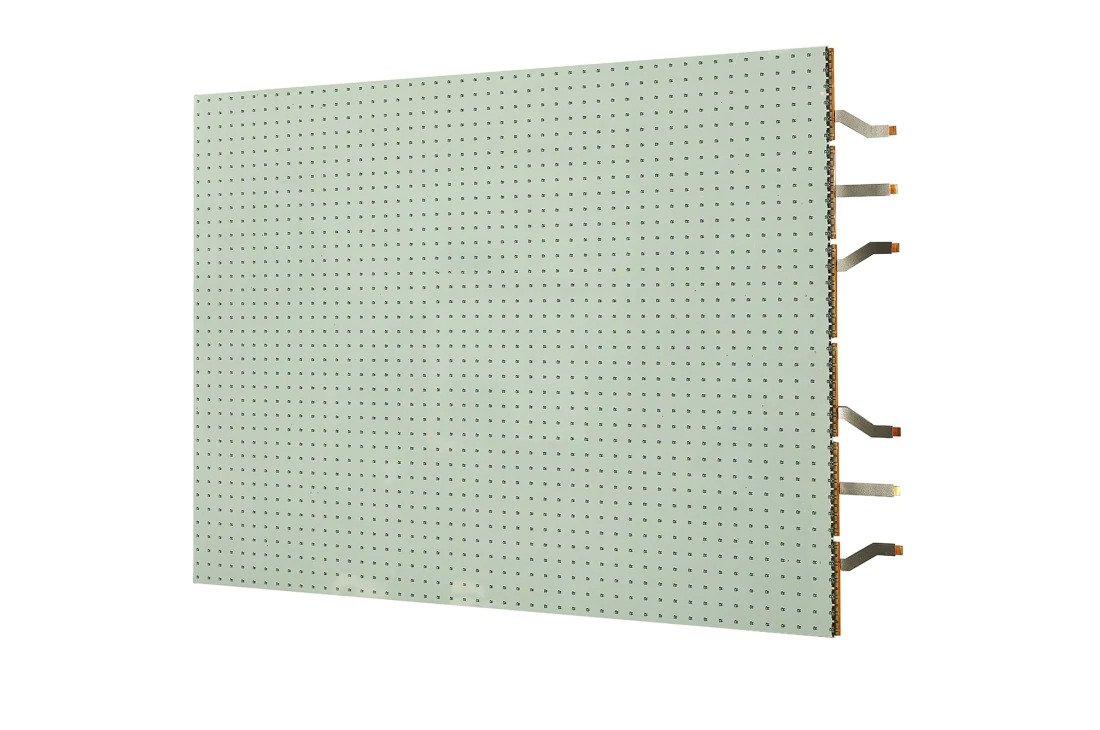

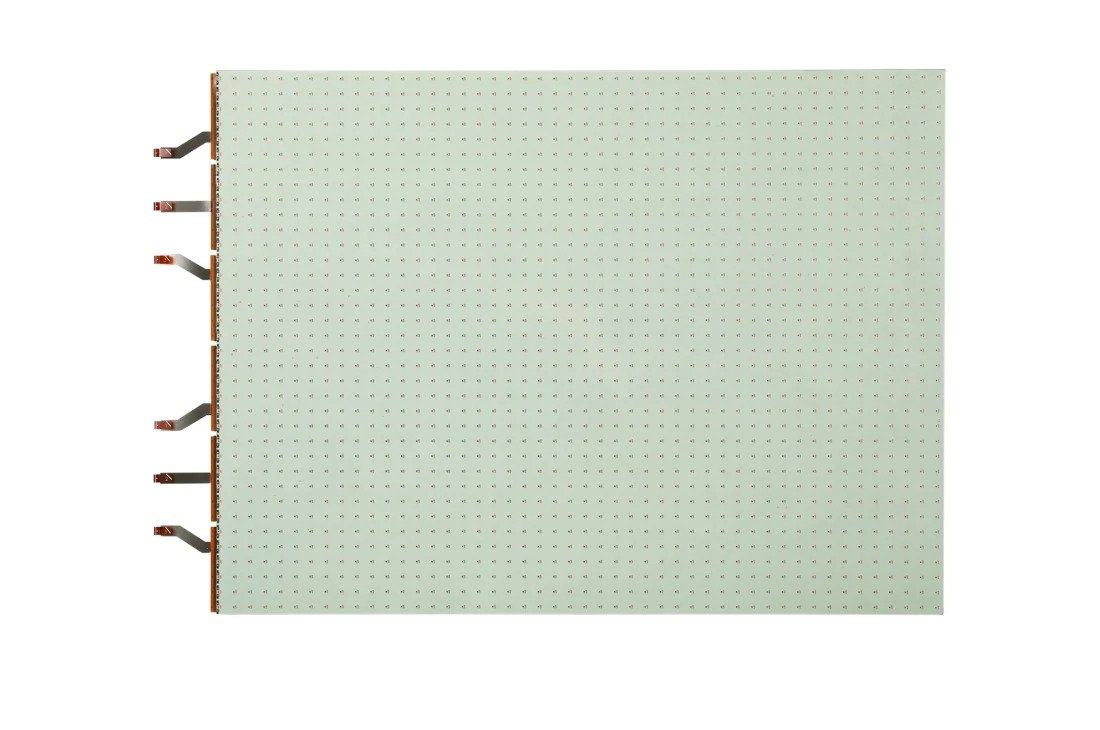

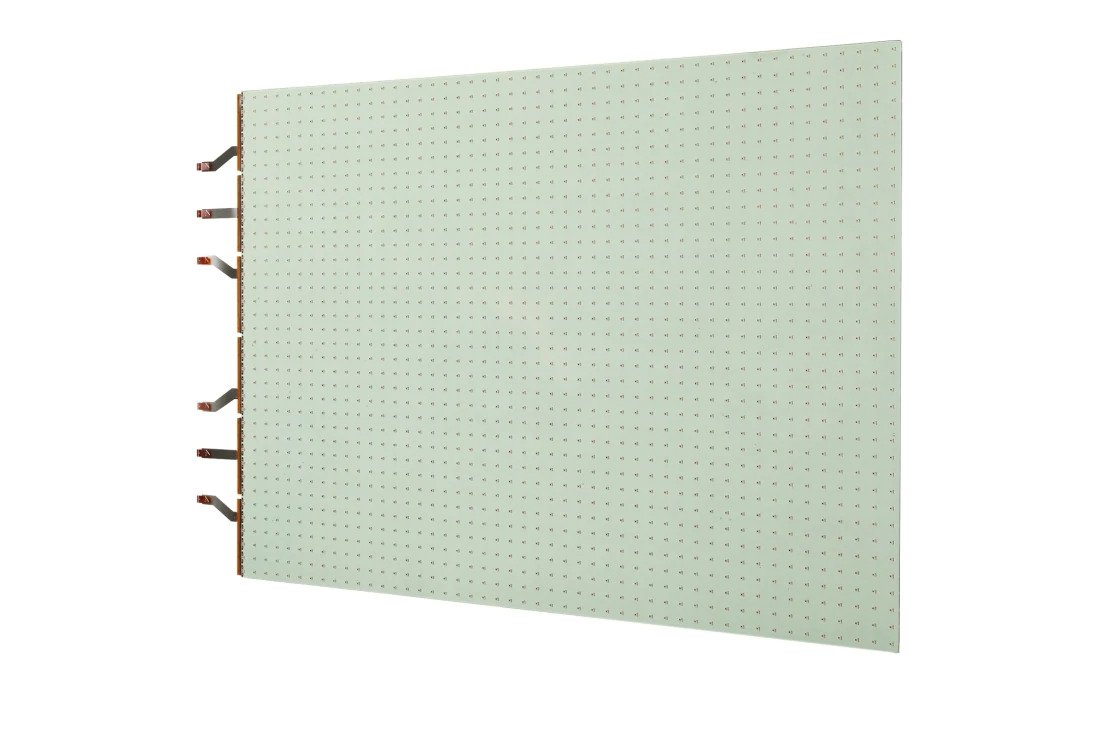

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 2,100cd/m²* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.
The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.
| Component | Specification |
|---|---|
| LED FILM (LAT140GT81) | |
| Pixel Pitch(mm) | 13.7±0.2mm |
| LED Type | R, G, B 3in1 Color Package (SMD2020) |
| Resolution | 48 x 36 |
| 1ST BEZEL (ACC-14LATB1) | |
| Dimension (W x H x D) | 69.4 x 492 x 25mm (Cover) |
| Weight | 0.4Kg |
| COMMON BEZEL (ACC-14LATB2) | |
| Dimension (W x H x D) | 51.4 x 492 x 25mm (Cover) |
| Weight | 0.3Kg |
| UNIT CONTROLLER (LCLG140U) | |
| Resolution | 960×540 (1/4 FHD) |
| Interface | Input: LVDS, Output: RJ45 x4EA |
| Maximum Transmission Length | 100m (Cable: CAT5E, CAT6) |
| Dimension (W x H x D) | 293 x 188.7 x 37mm |
| Weight | 1.5Kg |
| Temperature Sensor | Yes |
| Power Consumption | 20 W |
| SYSTEM CONTROLLER (LCLG002) | |
| Video (Max. Input Resolution) | DP: 1920×1080@60Hz, HDMI: 1920×1080@60Hz, DVI-D: 1920×1080@60Hz |
| Interface (Input) | HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jack Type), USB 3.0 |
| POWER (ACC-LATP1) | |
| Dimension (W x H x D) | 183 x 86 x 28mm |
| Weight | 769g |
| Input | 100 |
| Output | 19.5V/10.8A (210W) |
| Color | White |
| DC output cable | 14AWG, 1.5m |
| Type | L Type |
| ONE BOX CONTROLLER (CTAA-140G) | |
| Video | HDMI: 1920×1080@60Hz |
| Input | HDMI, RS232C (Phone Jack Type), RJ45, IR Receiver, USB 3.0 |
| Output | RS232C (Phone Jack Type), RJ45 (2) |
| Dimension (W × H × D) | 333 x 186.8 x 40.1mm |
| Weight (Head) | 1.82 kg |
| Temperature Sensor / Light Sensor | O / O |
| TPC (Temporal Peak Luminance Control) | Yes |
| Power Consumption | 30 W |
| CMS S/W | SuperSign CMS |
| Accessory | Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card |
