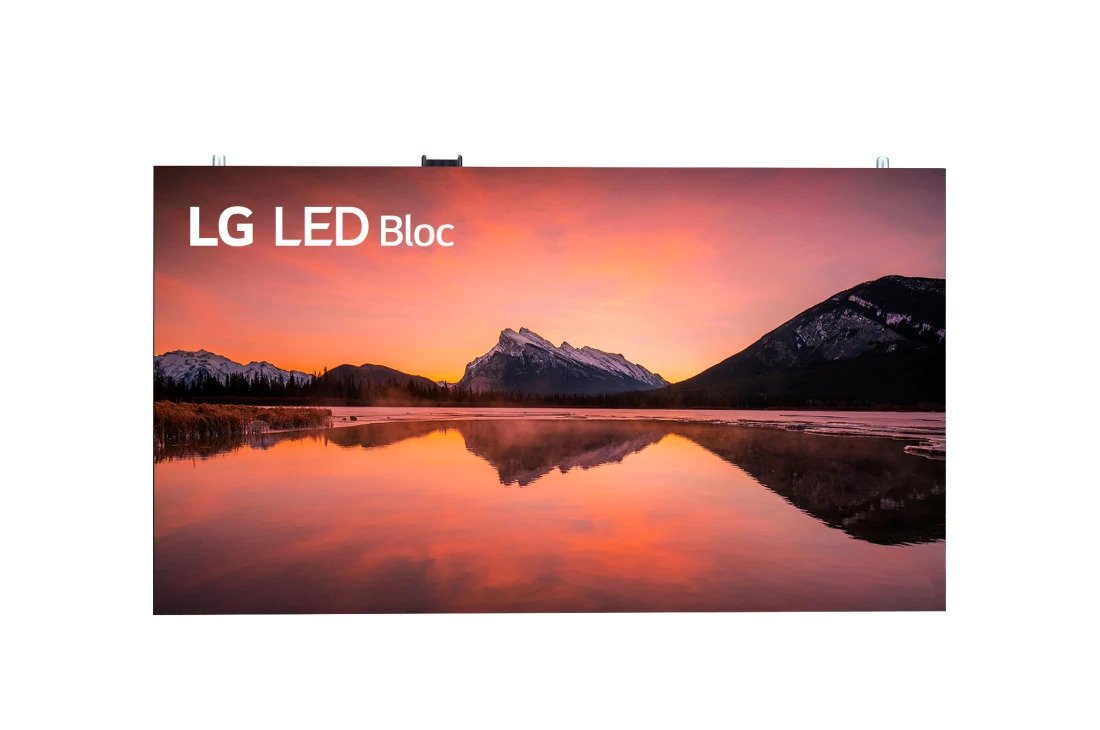

LG LED Bloc

0 out of 5 (0)

Write a review

Pixel Pitch: 1.25mm
Brightness: 600 cd/m²
Wireless Data Transfer and Cable-less Power Docking
AI-powered Image Processor
Real-time ConnectedCare Service

Get this product for

$0.10

Get it in 10 days

Estimate for 682345

Will be delivered to your location via DHL

Inquiry to Buy

Description Specifications Download Reviews (0)

Description

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact.
The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

True Innovation Behind Simplicity

With unrivaled picture quality and optimum cable-less design, Expand the Possibilities of Business Space Itself.

Why “Optimum Cable-less” LED

The LSAA series is the innovative LED signage applying the wireless transmission technology with *non-contact connectors. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAA series easier to be installed than ever before.

Easy Remote Control Support

The LSAA series allows users to easily access the settings, such as Picture Mode, volume, etc. by using a remote control instead of connecting to a PC. It uses the same UI as general LG digital signage, so users can easily adapt to it.

EMC Class B Certified

The LG LSAA Series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

Specifications

Category	Specification
Physical Parameter
Pixel Configuration	SMD, 4 Pixels in 1 PKG
Pixel Pitch	1.25 mm
Module Resolution	240 x 90
Optical Parameter
Brightness	600 nit (Typical), 1,200 nit (Peak)
Color Temperature	6,500K (Default), Adjustable 2,800~10,000K
Visual Viewing Angle	Horizontal: 170°, Vertical: 170°
Brightness Uniformity	98%
Color Uniformity	±0.015 Cx,Cy
Contrast Ratio	Peak: 8,000:1, Typical: 4,000:1
Processing Depth	20-bit
HDR Compatibility	HDR10, HDR10 Pro
Electrical Parameter
Power Consumption	Max: 112 W/cabinet, Avg: 67 W/cabinet
Power Consumption	Max: 555 W/m², Max: 383 BTU/h/cabinet, Avg: 230 BTU/h/cabinet
Power Supply	100 to 240 V
Frame Rate	50 / 60 Hz
Refresh Rate	3,840 Hz
Controller	CSAA-012X
Operation Conditions
Lifetime	100,000 Hours to Half Brightness
Operating Temperature	0°C to 40°C
Operating Humidity	10-80% RH
IP Rating	Front / Rear: IP20
Certification	Safety 60950-1, EMC Class B, BS476 Part7 Class1
Environment	RoHS
Accessory	Optional: Wall Mount Kit, Frame Kit
