Built for outdoor all-weather operation
Safe and durable construction
Large exhausts with inlet filter pads and excellent heat dissipation
Improved features over previous generation include security camera, augmented heat isolation, facial recognition terminal, lightweight materials and more
The N5 V2 model can accommodate 205 S19 model ASICs. It is exclusive to the S19/S17/T19 “double-stack” format of ASICs.
UPDATE 09.13.2023: USA stock sold out. Only Tianjin stock remains (new units).
UPDATE 11.03.2022: The Antbox N5 V2 has been discontinued. Please refer to the ModuleBox V4 as an updated and superior alternative.
Important note: All Antboxes are made to order with a production time of about 30 days. Ocean freight can take between 15-40 days depending on port of entry. Vipera will absorb the 25% import tariff for customers in the United States. Vipera can use its own freight forwarder for every order, and shipping costs are an extra consideration and will be billed at time of completion. Client must provide 3-phase power or transformer, flat concrete slab for placement, crane for placement, fire extinguisher, smoke detector, canopy and cabling ladder. 5 panel assembly required.

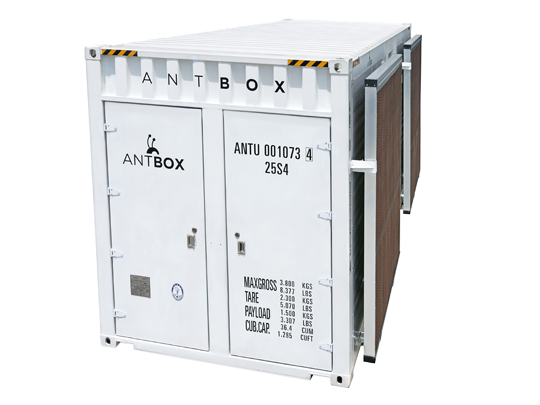

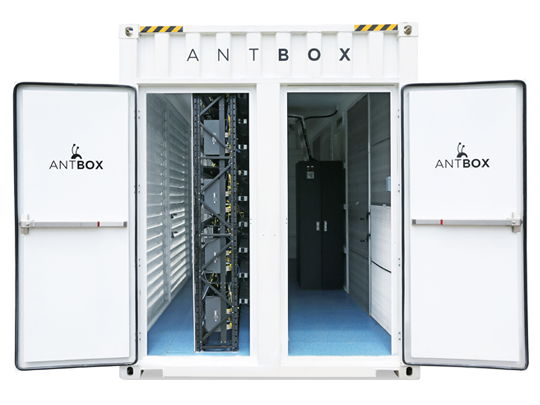

Version: ANTBOX N5 V2
Miner capacity: 17 series miner is 180 units
Operating power (KW): 658KW
Overall dimensions (L,W, H) (mm): 6058*2438*2896
Weight: ~ 3.8 tons
Container certification: China Classification Society Certification
Safety certificate: Power distribution cabinet, PDUs, cables, switches, network cables, etc are certified by UL/CUL
Voltage Input and frequency: 380V~415V AC 50~60HZ
| Parameter | Details |
|---|---|
| Version | ANTBOX N5 |
| Overall dimensions (L,W,H) (mm) | 605824382896 |
| Miner capacity | 19/17 series miner is 180 units |
| Voltage Input and frequency | 380V |
| Overall weight (ton, excluding miner) | 3.8 |
| Operating power (KW) | 658 |
| Standard power (KW) | 658 |
| Miner power cable | 360 |
| Safety certificate | Industrial Control Panel, PDUs, cables, switches, network cables, etc are certified by UL/CUL. |
| Main switch of Industrial Control Panel (A) | 1200 |
| Rated current (A) | 1000 |
| Maximum power (KW) | 719 |
| Single PDU rated current (A) | 31 |
| Overall weight (ton, excluding miner) | 3.8 |
| Single unit rated current (A) | 18 |
| Single socket rated current (A) | 9 |
| 2500KVA transformer can bring Antbox quantity | 4 |
| Snow load (KN/㎡) | 3.5 |
| Industrial Control Panel | 1 |
| Panel to PDU power cable | 30 |
| PDU | 30 |
| Network Switch | 15 |
| Network cable | 180 |
