Intel Xeon Platinum 8568Y+ 48C 350W 2.3GHz Processor
NVIDIA HGX H200 8-GPU SXM 141GB 700W GPUs
Direct GPU-to-GPU interconnect via NVLink delivers 900GB/s bandwidth for efficient scaling
A dedicated one-GPU-to-one-NIC topology: Supports up to 8 NICs for the highest throughput during compute-intensive workloads
Modular design with reduced cable usage: Shorten assembly time and improve thermal optimization
Advanced NVIDIA technologies: The full power of NVIDIA GPUs, BlueField-3, NVLink, NVSwitch, and networking

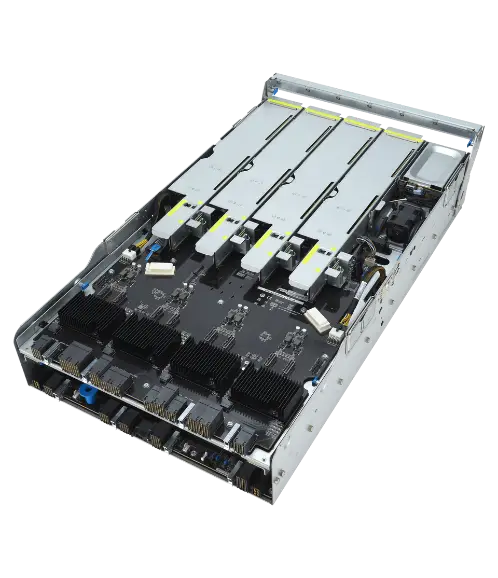

NVIDIA HGX™ H100/H200 8-GPU server
This 7U dual-socket server is powered by 5th Gen Intel Xeon® Scalable Processors and eight NVIDIA H100/H200 Tensor Core GPUs. Designed to accelerate the development of AI and data science, ESC N8-E11/ESC N8-E11V offers a dedicated one-GPU-to-one-NIC topology and supports up to eight NICs for the highest throughput during compute-intensive workloads. To reduce operating costs, the ASUS ESC N8-E11/ESC N8-E11V is engineered to provide effective cooling and innovative components that deliver thermal efficiency, scalability, and unprecedented performance.
| Specification | |||
| Processor / System Bus | 2 x Socket Intel Xeon Platinum 8568Y+ 48C 350W 2.3GHz Processor | Rear I/O Ports | 1 x locate button 1 x power button |
| Memory | Memory Total Slots: BOSS-N1 controller card + with 2 FIPS M.2 960GB (RAID 1) 8, 3.84TB Data Centre NVME Read Intensive AG Drive U2 Gen4 | Switch/LED | Front : 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 1 x Q-Code/Port 80 LED Rear : 1 x Location LED 1 x Power Button/LED |
| Expansion Slots | ESC N8-E11 H100 SKU: 12 x PCIe Gen5 slots[PCIe Switch directly] – 8 x PCIe Gen5 x16 link (LP, HL) [CPU directly] – 1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)* – 1 x PCIe Gen5 x8 link (FH, HL) + 1 x PCIe Gen5 x8 link (FH, HL) *Support PCIe x16 link for DPU ESC N8-E11V H200 SKU: [PCIe Switch directly] *Support PCIe x16 link for DPU [BF3 operation temperture 30℃ when using transceiver] | Management Solution | ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| Regulatory Compliance | BSMI, CB, CE, FCC, KCC | Dimensions | 885mm x 447mm x 306.65mm |
| Drive Bays | 10 x 2.5” hot-swap drive bays (8 NVMe, 2 NVMe/SATA/SAS*) [PCIe Switch directly] H100 SKU H200 SKU | Form Factor | 7U |
| Networking | 2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller) 1 x Management Por | Weight | Net Weight: 113 Kg. Gross Weight: 174 Kg. |
| Expansion Slots | ESC N8-E11 H100 SKU: 12 x PCIe Gen5 slots[PCIe Switch directly] – 8 x PCIe Gen5 x16 link (LP, HL) [CPU directly] – 1 x PCIe Gen5 x16 link (FH, HL)* + 1 x PCIe Gen5 x16 link (FH, HL)* – 1 x PCIe Gen5 x8 link (FH, HL) + 1 x PCIe Gen5 x8 link (FH, HL) *Support PCIe x16 link for DPU ESC N8-E11V H200 SKU: [PCIe Switch directly] *Support PCIe x16 link for DPU [BF3 operation temperture 30℃ when using transceiver] | Power Supply | Unit 3+3 FTR (GPU Power Brake Enabled), Hot-Plug PSU, 2800W MM HLAC (200-240Vac) Titanium |
| Front I/O Ports | 4 x USB3.2 Gen1 ports 1 x VGA port 2 x 10Gb RJ45 LAN module (Intel-x710 Based) 1 x Mgmt LAN 1 x locate button 1 x power button | Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
